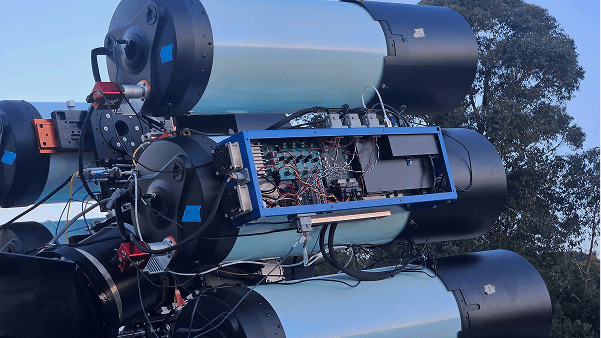

Telescope System using DAQAstra

A DAQ System for Engineers on the Cutting Edge

DAQAstra hardware offers pro-grade I/O, seamless peripheral support, and a modular design—giving you powerful control without the complexity or cost.

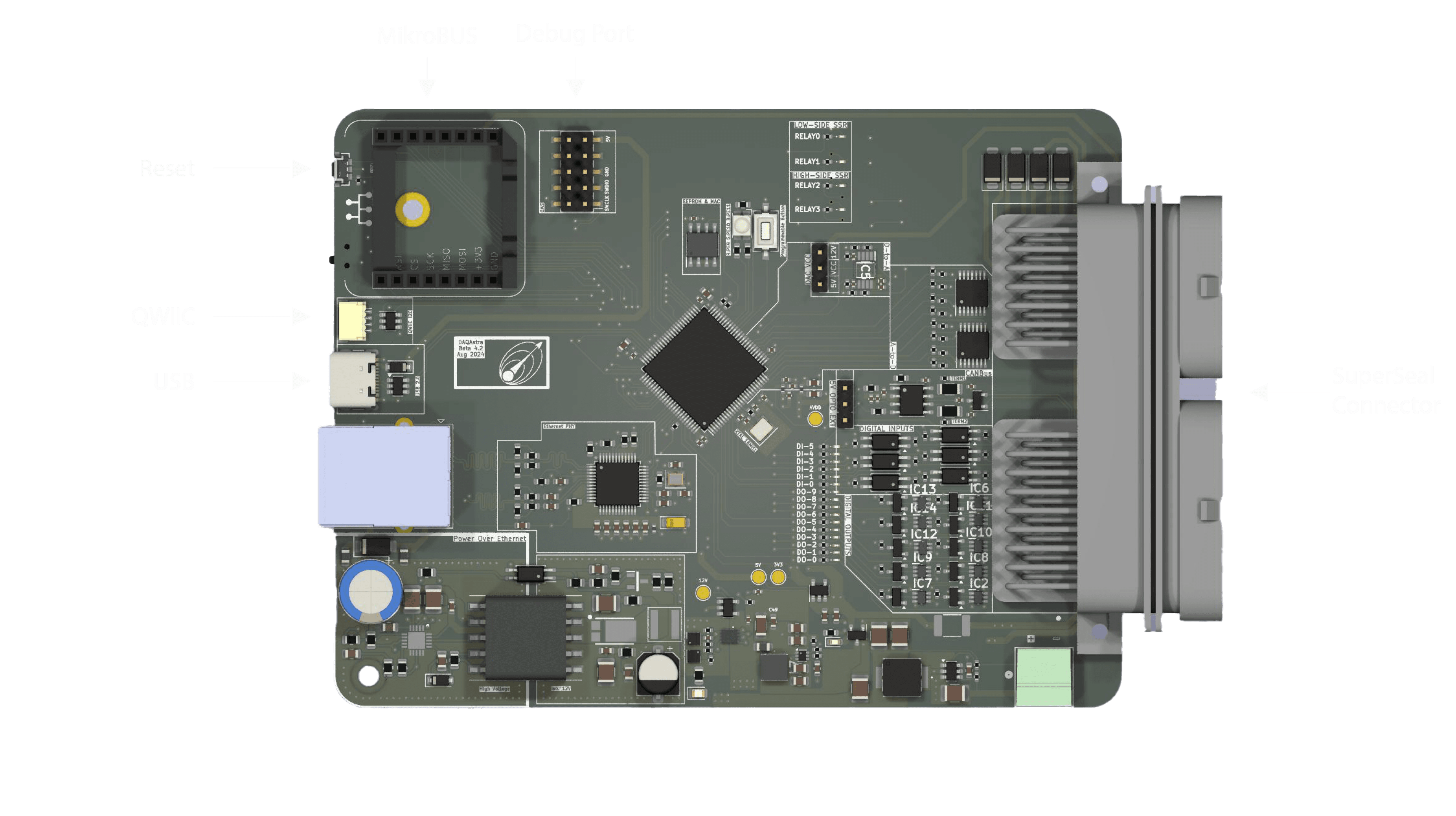

DAQAstra Board Features Diagram

How DAQAstra Works

  • • Plug-and-play application, with a simple web-interface for configuring DAQAstra and fleet management
  • • A large peripheral suite with a diverse set of sensors and actuators
  • • Mikrobus Integration
  • • Power over Ethernet (PoE) compliance

High Performance, Unlimited Configurability

AIN-Analog-to-Digital Converter

Input VoltageResolution 12-bit
Operating Frequency1k Sa/sec per channel

Connectivity

Ethernet100 Mbps
Serial InterfacesSPI, I2C, UART
Expansion PortMikroBus compatible

Digital-to-Analog Converter

Output Voltage0-5V/0-12V*
Output Current0-30mA

*Configurable with jumpers. For digital inputs where External VCC > 5V, add series resistor to limit current.

Solid-State Relays (SSR)

Switching Voltage0-60V
Switching Current3A
(Continuous)
Switching Frequency0-100kHz

Power

Input Voltage (PoE)IEEE 802.3af (12.95W)
Auxiliary Power Input12-32VDC

Power Output

12V Output Current30W
5V Output Current5W

Digital Input/Output

Voltage5V
Output Current0-50mA
PWM-Capable Outputs10
Input Voltage0-5VTTL/0-External VCC*
Input Current20mA max*

*Configurable with jumpers. For digital inputs where External VCC > 5V, add series resistor to limit current.

Compact with Power

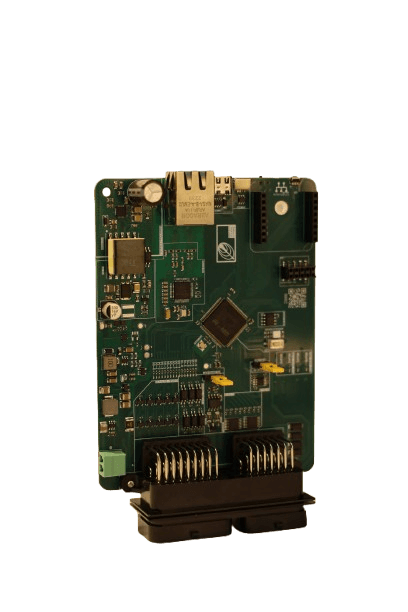

DAQAstra Board - Compact with PowerYellow pen for scale reference

Board without enclosure:
143.8 x 95 x 36.50mm

The pen provides scale reference - our board is incredibly compact while delivering full DAQ capabilities.

Built for the Field. Styled for the Lab.

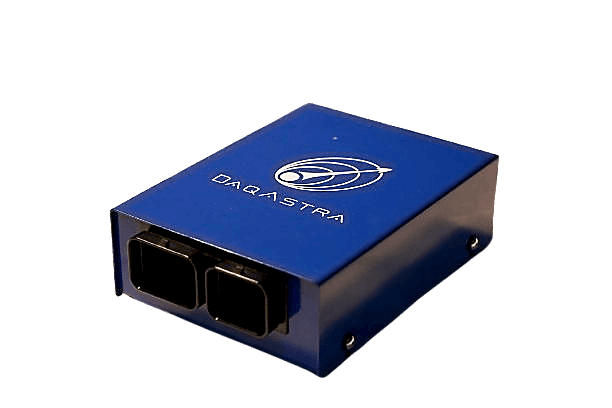

DAQAstra Board Enclosure - Built for Field and Lab

Stainless steel enclosure powder coated with our signature blue

Dimensions: 144 x 105 x 45 mm

Professional-grade protection that maintains the compact form factor while providing robust environmental shielding.

Included Accessories

SuperSeal™ Connectors & Pins

Auxiliary Power Pluggable Terminal Block

3D Printed Enclosure

Unlocking DAQAstra Board's Potential

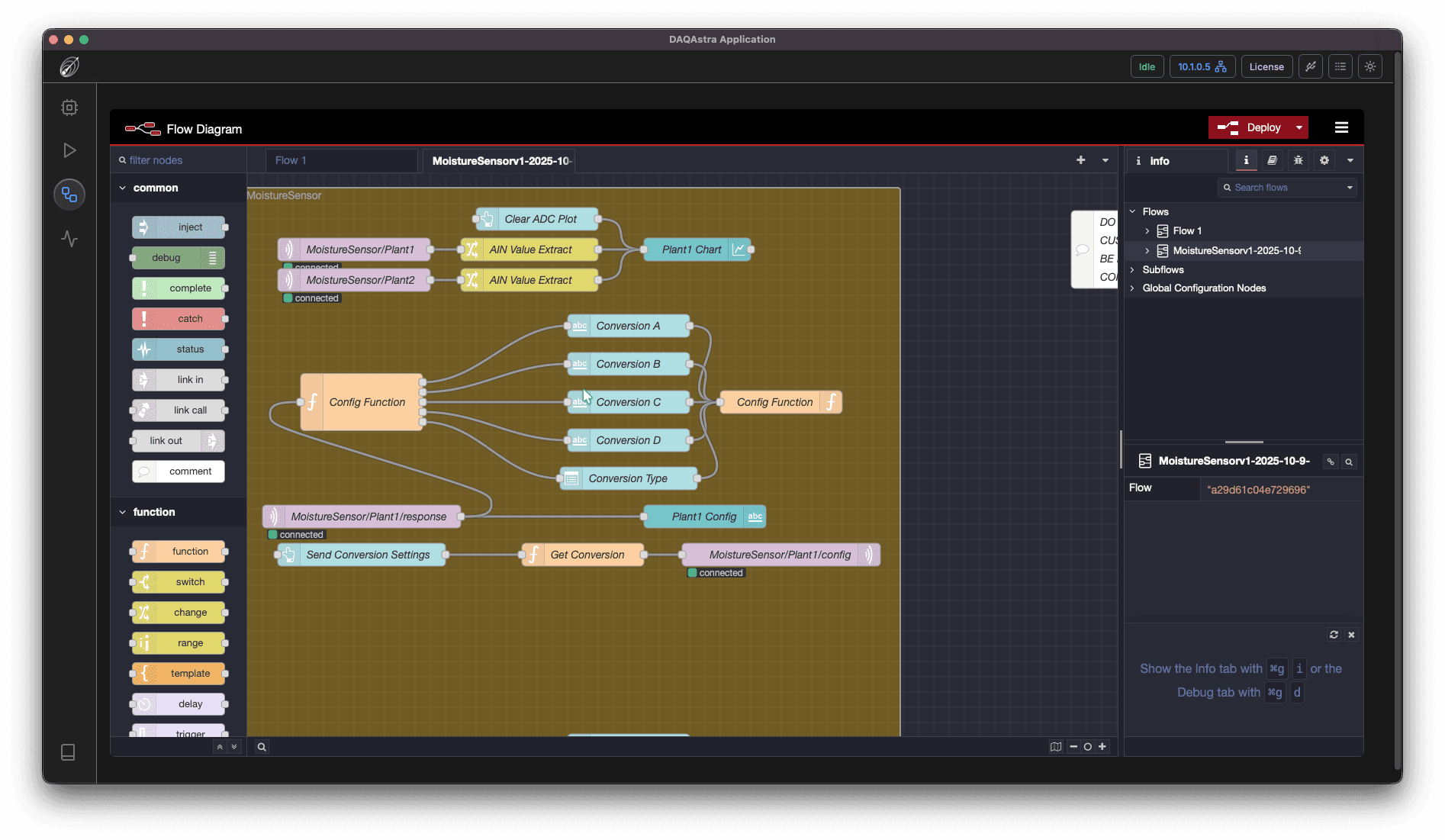

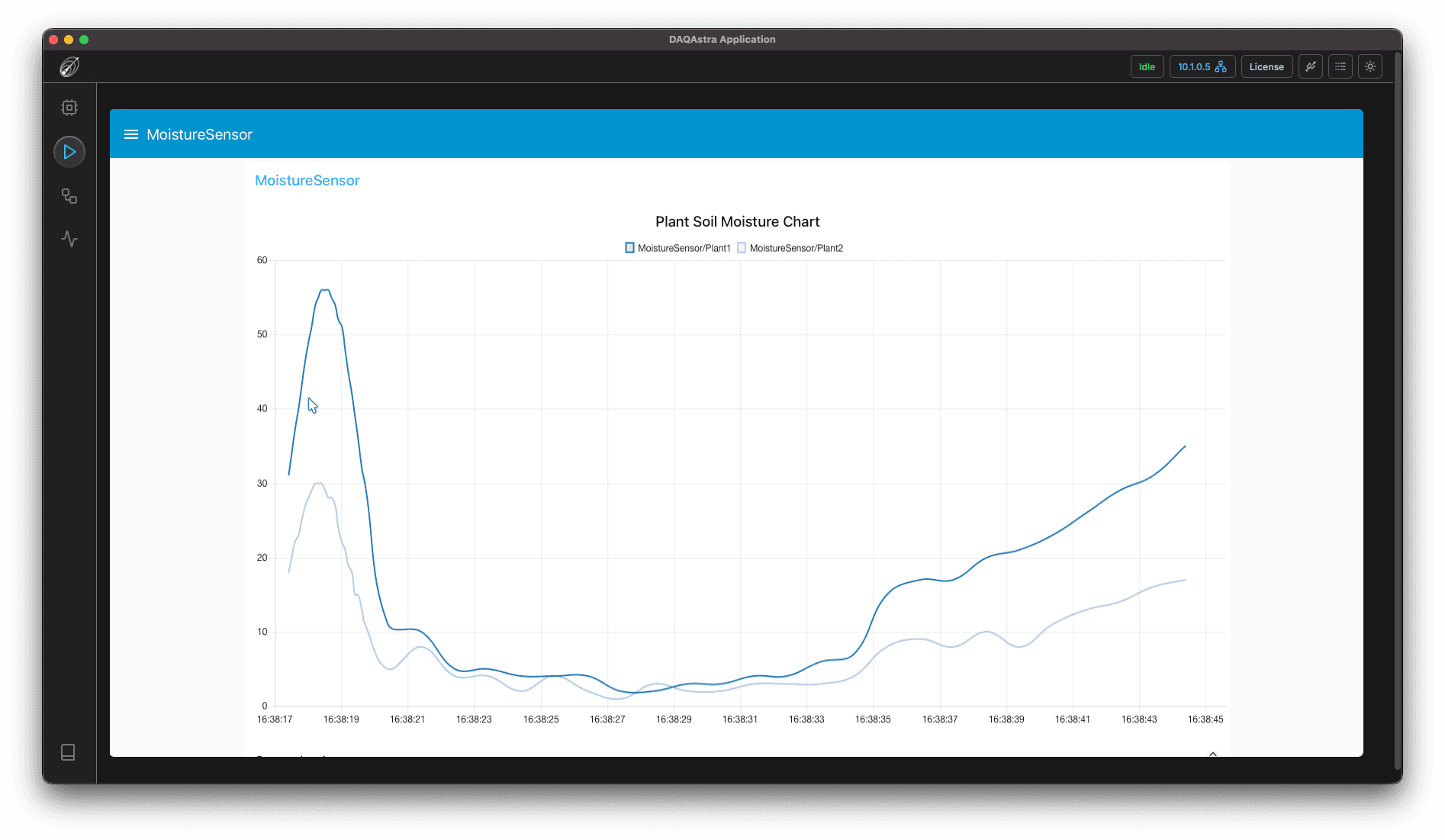

The DAQAstra Application unlocks powerful capabilities like code-free firmware design, seamless network integration, and auto-generated dashboards. A single license can support many boards on a single computer. Larger labs would benefit from multiple licenses to streamline work flows. To learn more about our software please click here.
